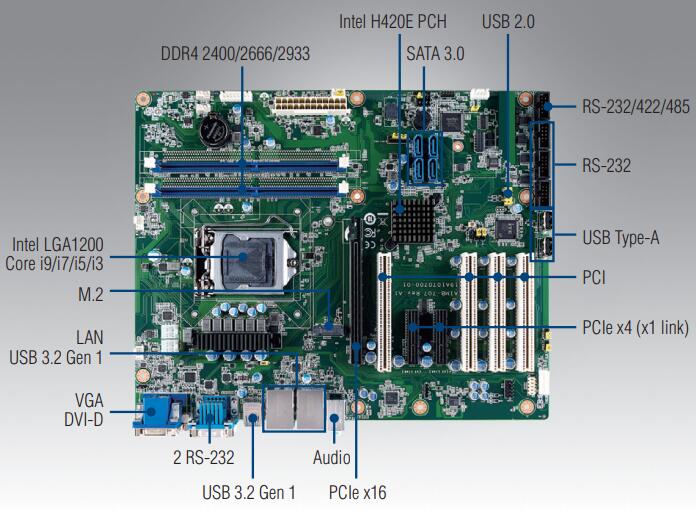

lga1200 10th generation intel® core™ i9/i7/i5/i3 & pentium®/celeron® atx with dvi/vga, ddr4, usb 3.2, m.2, 6 coms

• intel® 10th generation core™ i9/i7/i5/i3 & pentium®/celeron® processor with h420e chipset
• dual channel (non-ecc) ddr4 2400/2666/2933 up to 64 gb
• support vga and dvi display
• m.2, sata 3.0, usb 3.2, dual gbes
• 5 rs-232 and 1 rs-232/422/485 serial ports
• 1 pcie x16 (gen 3) and 2 pcie x4 (x1 gen 3 link), and 4 pci expansion slots
• note 1: legacy platform is not supported.
• note 2: dtpm 2.0 module is required to enable intel vpro and tpm technologies.
• note 3: intel® platform trust technology (intel® ptt) ready for windows 11.
